CPS

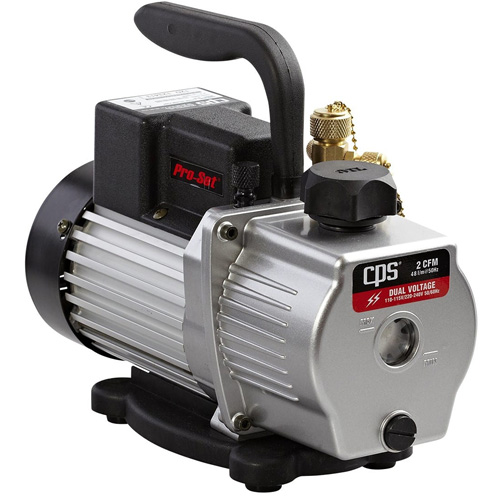

Pro-Set® Vacuum Pump

Model: FLU826

Mfr. No.: VP2D

See Product Details

  • Pro-Set® Vacuum Pump - CPS VP2D

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Free Air Displacement:

Related Products

Description

  • Dual voltage operation 110-120V/220V 50/60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns
  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for the clean, safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for 1/4″, 3/8″ SAE and 1/2″ ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
  • The solid rubber base provides extreme shock resistance
  • Sure-grip handle ergonomically designed for superior comfort and portability
  • A proprietary spring-activated polymer-based exhaust valve enables a 99.999% seal on the discharge port of the vacuum pump mechanism
  • Improved materials selection including hardness and additives, reduces wear and prevents galling
  • Improved internal oiling system design extends life and improves vacuum performance

Specifications

No. Of Stages

2

Free Air Displacement

2 CFM

Motor Size

0.3 HP

Voltage

110 V/120 V/220 V

Dimensions

12.2" x 5" x 9.6"

Weight

17.7 lbs. (8 kg)

Operating Temperature Range

0˚C (32˚F) to 52˚C (125˚F)

Oil Capacity

11.5 oz. (330 ml)

Intake Fittings

1/4" SAE, 3/8" SAE, 1/2" ACME

Country Of Origin

China
