Winters

Contractor Pressure Gauge, 4-1/2" , 0 - 160 psi, Bottom Mount, Analogue

Model: YB901

Mfr. No.: PCT324

See Product Details

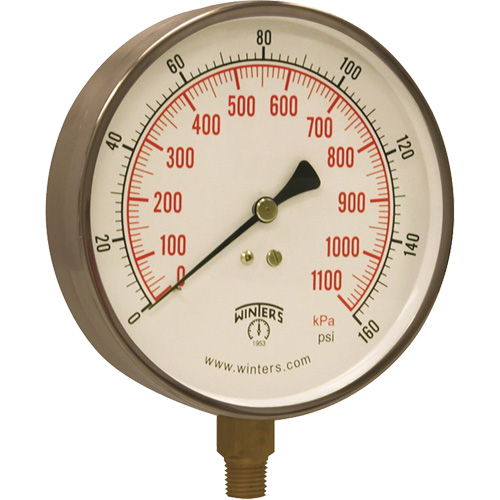

  • Contractor Pressure Gauge, 4-1/2" , 0 - 160 psi, Bottom Mount, Analogue - Winters PCT324

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • Economical stainless steel case gauge with brass wetted parts
  • Zero adjustment screw
  • Restricted orifice
  • ASME B40.100 compliant and CRN registered
  • Also measures in kilopascals (kPa)
  • Applications include commercial air, water and steam services (with syphon), and more

Specifications

Dial Diameter

4-1/2"

Pressure Range

0 - 160 psi

Connection

Bottom Mount

Dial Type

Analogue

Connection Thread

1/4" NPT

Accuracy

±1% ANSI/ASME Grade 1A

IP Rating

IP52

Case & Ring Material

304 Stainless Steel

Lens Material

Acrylic

Bourdon Tube Material

Phosphor Bronze

Over-Pressure Limit

25% for Pressures up to 1450 psi (9998 kPa), 15% for Pressures Over 1450 psi (9998 kPa)

Working Pressure

Maximum 75% of Full Scale Value

Manufacturer's Warranty

  • 5 Years
