Tractel

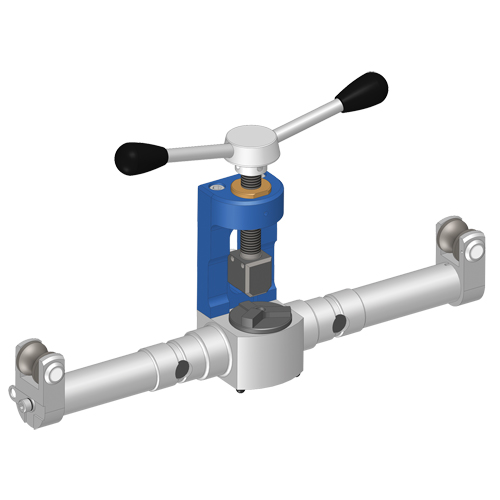

Dynarope Tensiometer HF 36/2/LPT

Model: LV288

Mfr. No.: 0187948

See Product Details

  • Dynarope Tensiometer HF 36/2/LPT - Tractel 0187948

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Generally ships direct from manufacturer

Sold as: Each

Related Products

Description

  • Designed for measuring forces in pretension wire ropes that cannot be dismantled and for which tension must be known or confirmed
  • Fits directly onto the tensioned wire rope and is simply held in position by turning a handle
  • Device is comprised of a load cell with strain gauges and a display driven by a microprocessor
  • Display of the force measured by the load cell takes into account parameters you enter such as the diameter, composition and structure of the rope
  • Accuracy:<1% of nominal capacity
  • Operating temperature from -4 to 140°F (-20 to 60°C)
  • Displays mass or force
  • Protection: IP 65 (NEMA 4)
  • FOB Tractel, Montreal, Qc

Specifications

Working Load Limit Range

800 lbs - 40000 lbs. (400 kg - 20000 kg.)

Wire Rope Diameter

1-1/8"

Increments

50 lbs. (25 kg)

Min. Wire Rope Diameter

3/8"
