Topdon

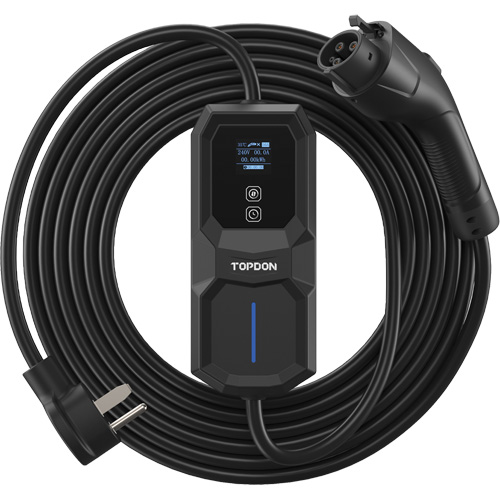

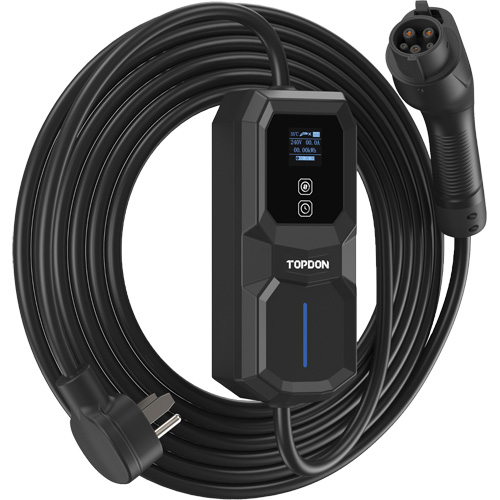

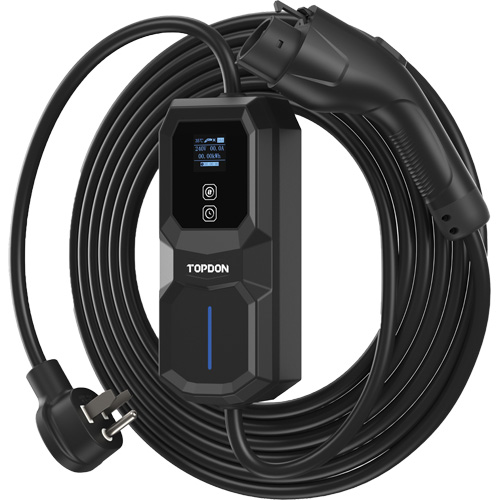

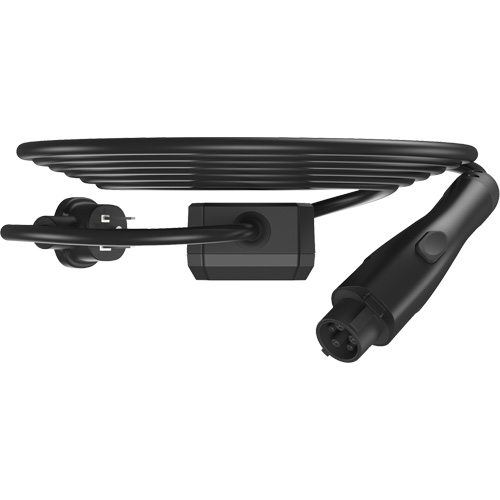

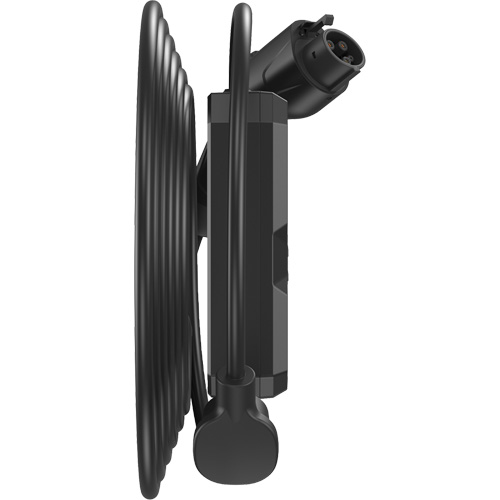

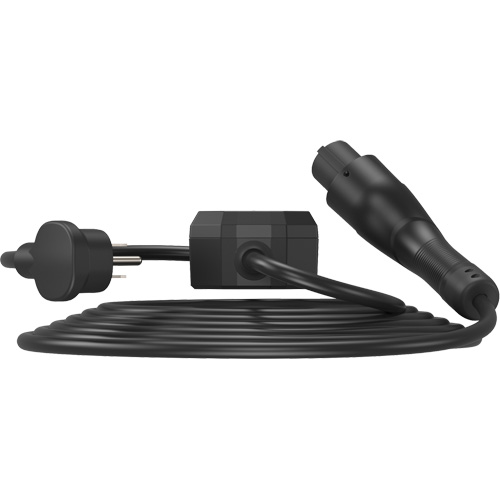

PulseQ AC Portable NEMA 6-50 Plug, 32 A, Level 2 AC, Type 1 (SAE J1772) Connector

Model: FLV462

Mfr. No.: ACPORT32N650

See Product Details

  • PulseQ AC Portable NEMA 6-50 Plug, 32 A, Level 2 AC, Type 1 (SAE J1772) Connector - Topdon ACPORT32N650

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • Fully compliant with US standards, including FCC, ETL, and UL certifications for the entire unit, charging cable, and UL certification for the plug
  • Plug-and-charge convenience with the option for scheduled charging
  • NEMA type4 rating, ensures dustproof and waterproof capabilities, suitable for both indoor and outdoor installation
  • Designed to work seamlessly with J1772-compliant electric vehicle models
  • Clear and comprehensive display of voltage, current, temperature, charging capacity, and charging time
  • Supports single-phase voltage of 120/240V, AC current ranging from 16-32A, and operates at a frequency of 60Hz
  • Current can be set at 16/20/24/32A
  • The green solid light indicates the standby mode, the blue solid light indicates connection, a blue flashing light indicates charging, and the red flashing light indicates a fault
  • Offers multiple layers of protection, including undervoltage, overvoltage, overload, over-temperature, short circuit, ground fault, leakage, and lightning protection

Specifications

Max Power Output

32 A

Type

Level 2 AC

Connector Type

Type 1 (SAE J1772)

Operating Temperature

-22°F - 122°F (-30°C - 50°C )

Plug Compatibility

NEMA14-50P

Input/Output Power Rating & Current

Single Phase: Up to 7.7kW and 32A

Input/Output Voltage

120/240V Single Phase

Power Frequency

50/60Hz

IP Rating

NEMA Type4

Cable Length

Input: 36.6" (0.93 m), Control box: 9.84" (0.25 m), Output: 295.27" (6.4 m)

Dimensions

9.45" x 3.94" x 2.56" (240 x 100 x 65mm)

Weight

8.82 lbs. (4 kg)

Country Of Origin

China

Manufacturer's Warranty

  • 1 Year
