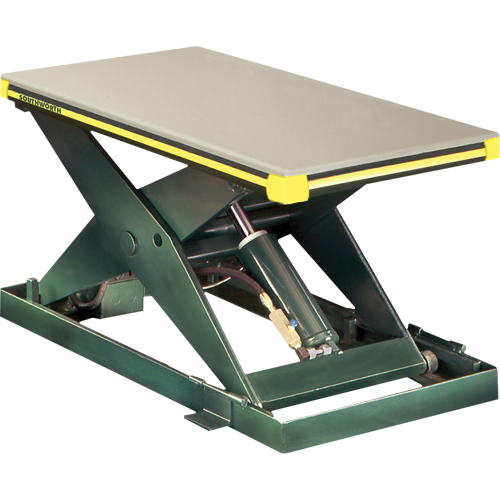

Hydraulic Backsaver Scissor Lift Table, Steel, 24" W x 48" L, 2000 lbs. Capacity

Model: LT584

Mfr. No.:Manufacturer Model No.: LC0236LSACXS1A

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Description

Smooth plate with comfort edge platform
Adjustable with a pressure sensitive flow control
1.0 HP TENV electric motor and 0.85 GPM hydraulic pump, valving, and reservoir filled with oil
NEMA 1 footswitch with safety cover includes a 10ft straight cord
One 3 1/2" low pressure cylinder with chrome plated rod, power up/gravity down
All pivot points are equipped with Teflon lined bishings
Leg rollers include wear indicators
Parts & labor are warrantied for 2 years
Dark green self-priming machinery enamel with platform painted beige

Specifications

Platform Dimensions: 24" W x 48" L
Capacity: 2000 lbs.
Raised Height: 42.75"
Lowered Height: 6.75"
Frame Material: Steel
Base Length: 48"
Base Width: 24"
Vertical Travel: 36"
Elevating Time (seconds): 21
Primary Voltage: 115/1/60
Control Voltage: 115/1/60
Weight: 600 lbs.
Country Of Origin: United States

Manufacturer's Warranty

2 Years
