Reed Instruments

Thermo-Anemometer, Data Logging, 0.4 - 30 m/sec Air Velocity Range

Model: IC511

Mfr. No.: R4000SD

See Product Details

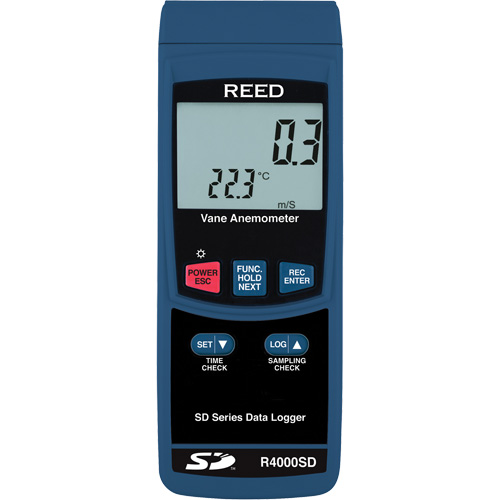

  • Thermo-Anemometer, Data Logging, 0.4 - 30 m/sec Air Velocity Range - Reed Instruments R4000SD

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • Measures air velocity as well as temperature with a type J/type K thermocouple thermometer
  • Low friction ball-bearing, rotating vane probe

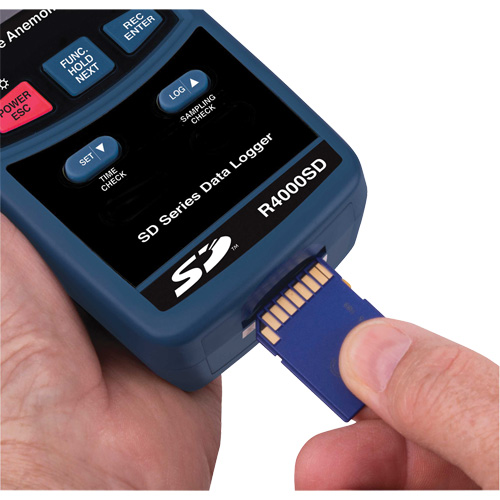

  • Real time data logger with integral 2GB SD memory card (optional)
  • Air velocity is measured in m/s, ft/min, km/h, mph or knots
  • Temperature is measured in ºC or ºF

Includes

  • (1) Data Logging Hot Wire Thermo-Anemometer
  • (1) ISO Certificate with full Data and Uncertainties
  • (1) Telescopic Hot Wire Probe
  • (1) Hard Carrying Case
  • (6) AA Batteries

Specifications

Air Velocity Range

0.4 - 30 m/sec

Data Logging / Not Data Logging

Data Logging

Measuring Ranges

fpm: 79 to 5906, km/h: 1.4 to 108, mph: 0.9 to 67.1, knots: 0.8 to 58.3, Air Temperature: 32 to 122°F (0 to 50°C), Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C), Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C)

Accuracy

Air Velocity: ±(2% rdg + 40 fpm, 0.2 m/s, 0.8 km/h, 0.4 mph, 0.4 knot), Air Temperature: 1.5°F (±0.8°C), Temperature: -58°F (-50°C) ±(0.4% + 1°F (0.5°C)), -58°F (-50°C) ±(0.4% + 1.8°F (1°C))

Resolution

fpm: 1, m/s, km/h, mph, knot: 0.1, Temperature: 0.1°F/°C

Vane Diameter

2.8" (72mm)

Display

5-digit, Dual LCD Display

Operating Temperature

32 to 122°F (0 to 50°C)
