Reed Instruments

Digital Multimeters, AC/DC Voltage, AC/DC Current

Model: XC308

Mfr. No.: R5010

See Product Details

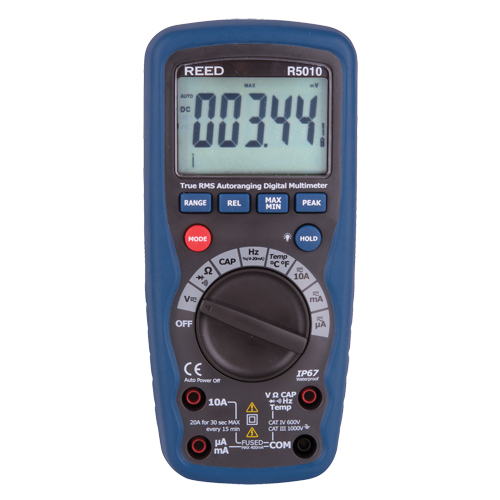

  • Digital Multimeters, AC/DC Voltage, AC/DC Current - Reed Instruments R5010

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

In Stock

Related Products

Description

  • 0.05% basic DC accuracy
  • 40 000-count resolution
  • Measures frequency, capacitance and temperature
  • True RMS AC/DC voltage and current measurements
  • Diode check and continuity test
  • Backlit LCD readout with analog bar graph
  • 1000 V input protection on all ranges
  • 4-20 mA process loop measurements with % readout
  • Data hold, Max/Min recording mode
  • Peak capture mode
  • IP67 dust and waterproof
  • EN61010-1 Cat. IV 600 V, Cat. III 1000 V safety rating
  • Includes test leads and 9 V battery

Specifications

Voltage Readings

AC/DC

Current Readings

AC/DC

AC/DC Voltage Range

1000 V

Voltage Accuracy

AC ±1.0%, DC ±0.05%

AC/DC Current Range

10 A

Current Accuracy

AC ±1.5%, DC ±1.0%

Resistance Range

40 MΩ

Resistance Accuracy

±0.3%

Frequency Accuracy

±0.1%

Capacitance Range

40 mF
