Lincoln Electric

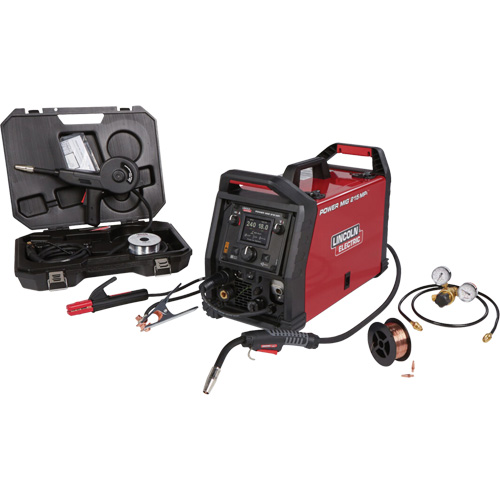

POWER MIG® 215 MPi™ Multi-Process Welder Aluminum One-Pak®, 120 V/230 V, 1 Ph, 60 Hz

Model: TTV729

Mfr. No.: K4877-1

See Product Details

  • POWER MIG® 215 MPi Multi-Process Welder Aluminum One-Pak®, 120 V/230 V, 1 Ph, 60 Hz - Lincoln Electric K4877-1

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • Portable welder for MIG, stick, TIG, and flux-cored welding
  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply
  • Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop
  • Built in TIG Solenoid and Foot Pedal Adapter - The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required
  • Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience
  • Ready.Set.Weld® Technology - Simplifies setup by recommending optimal welding parameters for each welding procedure
  • ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome
  • Memory Capability - Easily recall saved settings to get welding faster
  • Lightweight and Portable - Only 48 lbs.

Includes

  • (1) POWER MIG 215 MPi Multi-Process Welder
  • (1) K4076-1 Magnum® PRO 175L Gun 10 ft. (3.0 m)
  • (1) K3269-1 Magnum PRO 100SG Spool Gun
  • (1) 230V to 120V Power Cord Adapter
  • (1) Work Cable and Clamp
  • (1) Electrode Holder and Lead Assembly
  • (1) Adjustable Gas Regulator and Hose
  • (1) Gasless Nozzle
  • (1) Gun Cable Liner (pre-installed"gun)
  • (1) Spindle Adapter
  • (1) ED030631 Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® MIG Wire
  • (2) Contact Tips 0.025"(0.6 mm)
  • (2) Contact TIps 0.035"(0.9 mm)
  • (1) Drive Rolls 0.025-0.030"(0.6-0.8 mm) and 0.035"(0.9 mm) (Installed)
  • (1) Knurled Drive Roll 0.030-0.045"(0.8-1.1 mm)
  • (1) Wire Guide 0.045"(1.1 mm) and 0.025-0.035"(0.6-0.9 mm)(Installed)

Specifications

Voltage Input Power

120 V/230 V

Phase Input Power

1 Ph

Hertz Input Power

60 Hz

Dimensions

15.08"x 10.88"x 23.14 in

Net Weight

48 lbs (21.8 kg)

Machines Processes

Stick (SMAW), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW)

IEC Rating

IP21S

Input Current

120V: 15A, 230V: 15.9A

Output Range

120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V

Polarity

DC

Rated Output

120V: 105A/19.3/40% 230V: 215A/24.8V/30%
