Lincoln Electric

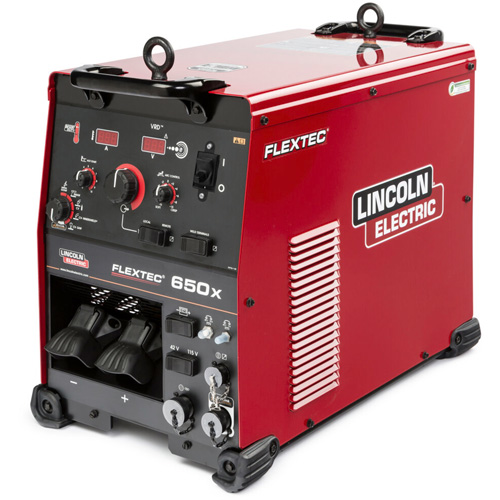

Flextec® 650X Multi-Process Welder with CrossLinc™ Technology, 380 V/460 V/575 V, 3 Ph, 50/60 Hz

Model: TTV752

Mfr. No.: K3425-1

See Product Details

  • Flextec® 650X Multi-Process Welder with CrossLinc Technology, 380 V/460 V/575 V, 3 Ph, 50/60 Hz - Lincoln Electric K3425-1

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • Use with a wide range of available 3 phase input power
  • Easy one-knob process selection
  • Components designed to run cool for long life in high temperature environments
  • Ideal for large diameter wire or Stick welding on thick materials
  • Up to 800A of output

For Use With

  • Cross Country Pipeline, Construction & Field Erection, General Fabrication, Heavy Equipment, Heavy Fabrication, Structural Fabrication

Specifications

Voltage Input Power

380 V/460 V/575 V

Phase Input Power

3 Ph

Hertz Input Power

50/60 Hz

Dimensions (H X W X D)

21.8" x 16.1" x 29.3" (554 mm x 410 mm x 745 mm)

Weight

165 lbs. (74.844 kg)

Wire Feeder Supply Voltage

115 VAC, 42 VAC

Work Lead Connector Type

Lug

Output Range

10-815 A

Rated Output

750A/44V/60%, 650A/44V/100%

Manufacturer's Warranty

  • 3 Years
