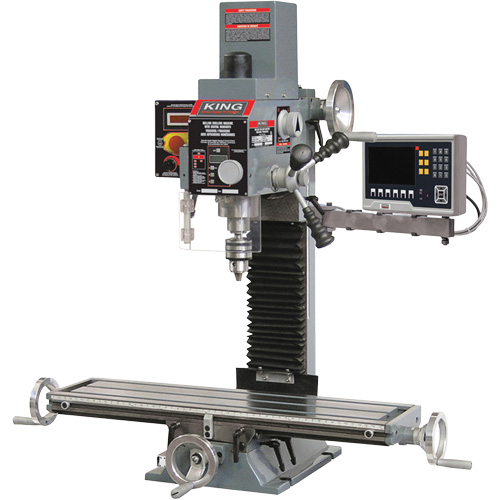

Milling Drilling Machine with 3-Axis Digital Readout, 2 Speeds, 3/4"/5/8" Drilling Capacity

Model: TCV129

Mfr. No.:Manufacturer Model No.: KC-20VS-2/DRO

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Description

Powerful 1 HP, 120V single phase DC motor
3 axis (X, Y, Z) digital readout (DRO) for precise operations and repeatable results
Safety guard with limit switch protection
Spindle depth digital readout and control panel with metric and imperial readings
Spindle RPM digital readout & spindle depth fine feed knob
Forward/reverse switch and variable speed selector dials
Coolant trough in table
1/2" T-slot on table
220V, 1 phase, 60Hz
3/4" drilling capacity in cast iron, 5/8" drilling capacity in steel
4.8 Amp., 2,250 RPM motor

Includes

Milling drilling machine
1/2" chuck
chuck key
R8 chuck arbor
safety guard
2 T-bolts
oil bottle
adjustment wrenches
hex keys
tool box

Specifications

Drilling Capacity: 3/4"/5/8"
No. Of Speeds: 2
Table Size: 7-1/16" W x 27-1/2" L
Overall Width: 24"
Overall Length: 35-1/2"
Overall Height: 36-1/4"
Max. Distance Spindle Nose To Table: 13"
Swing: 13"
Spindle Taper: R8
Spindle Stroke: 2"
Cross Travel: 6-7/8"
RPM: 50-1,125 / 100-2,250
Face Mill Capacity: 2-1/2"
End Mill Capacity: 3/4"
Max. Longitudinal Travel: 18-7/8"
Country Of Origin: China
