FTI Finish Thompson Inc.

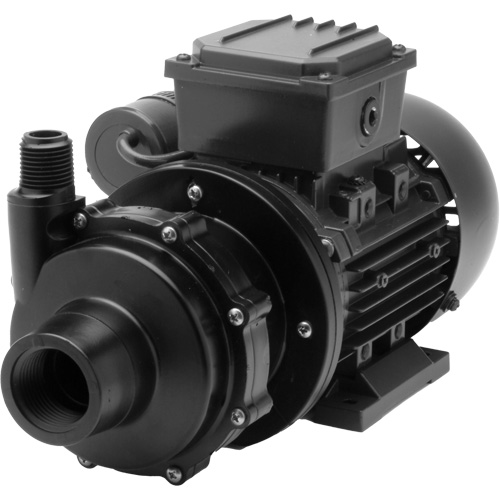

Magnetic Drive Pump with PTFE Bushing

Model: PUN281

Mfr. No.: DB3V-T-M612

See Product Details

  • Magnetic Drive Pump with PTFE Bushing - FTI Finish Thompson Inc. DB3V-T-M612

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP

Specifications

Intake Size

1"

Discharge Port Size

1/2"

Motor

1/8 HP

Suction Head

20'

Connection Type

NPT

Impeller Size

2.3"

Magnet Type

6-Pole

Material

PVDF

Max. Flow

15 GPM

Motor Frame Size

IEC 56-B14

Phase

1 Ph

Voltage

115

Country Of Origin

United States

Manufacturer's Warranty

  • 5 Years
