Fluke

1550C Insulation Tester Kit, Digital

Model: IB114

Mfr. No.: 1550C/KIT

See Product Details

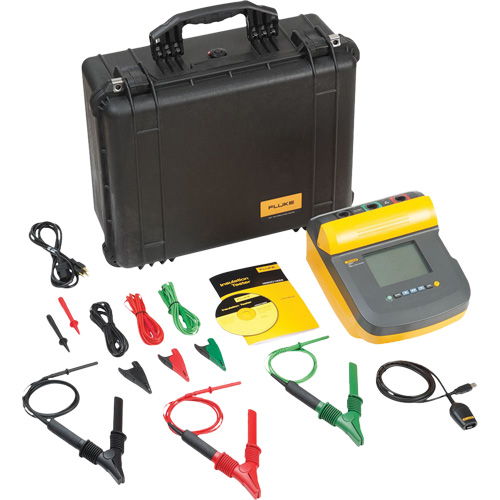

  • 1550C Insulation Tester Kit, Digital - Fluke 1550C/KIT

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • Quickly configure, start and stop tests remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smart phone
  • Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
  • Fluke Connect® saves test results to the cloud for analysis and preventive maintenance
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Ramp function for breakdown testing
  • Includes: Test cables with alligator clips (red, black, green), Infrared adapter with interface cable, AC power cord, IP67 hard case, Certificate of calibration, Manuals and CD-ROM, Software license agreement, Registration card, Heavy-duty alligator clip leads

Specifications

Display Type

Digital

Max. Test Voltage

5 kV

Resistance Range

0 - 1 TΩ

Accuracy

-0%, +10% at 1 mA load current

Leakage Current Range

1 nA - 2 mA

Capacitance Range

0.01 μF - 15 μF

Timer

0 - 99 min.

System Requirements

Windows XP, Windows Vista, Windows 7 or Windows 8

Safety Rating

CAT III 1000 V, CAT IV 600 V

IP Rating

IP40
