Dwyer

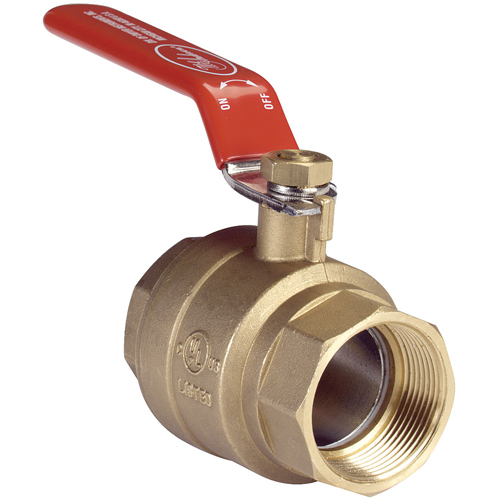

Two-Piece Hand Lever Ball Valves - Series BV2MB, Brass, Manual, 2", FNPT x FNPT

Model: THZ617

Mfr. No.: DBV-07

See Product Details

  • Two-Piece Hand Lever Ball Valves - Series BV2MB, Brass, Manual, 2", FNPT x FNPT - Dwyer DBV-07

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • ; Body: Two-Piece ; End Connections: 1/4" to 3" female NPT ; Pressure Limits: 1/4" to 1": 600 PSI (41.4 bar), 1 1/4" to 2": 400 PSI (27.6 bar), 2 1/2 to 3": 200 PSI (13.8 bar) WOG ; Wetted Materials: Body and body cap: forged brass (ASTM B283-C37700); ball and stem: brass; seat and packing Teflon® Temperature Limits: 10 to 200 °F (-12 to 93 °C) ; Other Materials: Body seal: rubber; handle: plated steel; nut and gasket: brass

Specifications

Material

Brass

Mechanism Type

Manual

Pipe/Hose Diameter

2"

Connection Type

FNPT x FNPT

Cv

325

Catalog Page & Resources
