Dwyer

605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter, 4" , 0 - 0.5 in. w.c., Panel Mount, Analogue

Model: HC854

Mfr. No.: 605-0

See Product Details

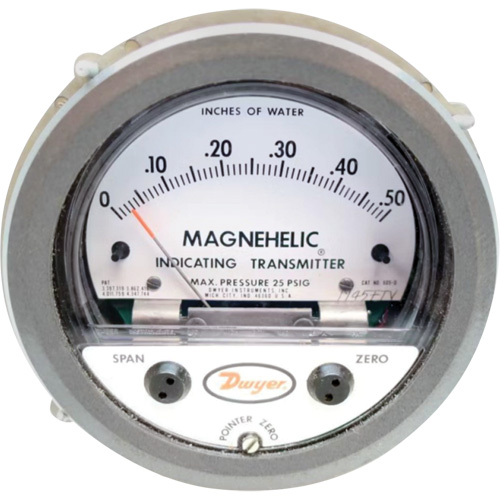

  • 605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter, 4" , 0 - 0.5 in. w.c., Panel Mount, Analogue - Dwyer 605-0

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • Provides for both visual monitoring and electronic control of very low differential pressure
  • Ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when troubleshooting the system
  • Easy-to-read dial gauge is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gauge mechanical design and Series 600 transmitter technology
  • The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply
  • Services air and non-combustible, compatible gases

Specifications

Dial Diameter

4"

Pressure Range

0 - 0.5 in. w.c.

Connection

Panel Mount

Dial Type

Analogue

Maximum Pressure

25 psi

Gauge Accuracy

±3%

Gauge Stability

±1% F.S./yr.

Gauge Pressure Limits

25 psi (1.7 bar)

Transmitter Accuracy

+/-2%

Connection Thread

1/8" NPT Female

Gauge Certification(s)

CE

Temperature Limits

20 to 120°F (-6.67 to 48.9°C)

Transmitter Compensated Temperature Range

32 to 120°F (0 to 48.9°C)
