DESTACO

Vertical Hold-Down Clamps - 201 Series

Model: TN059

Mfr. No.: 201-U

See Product Details

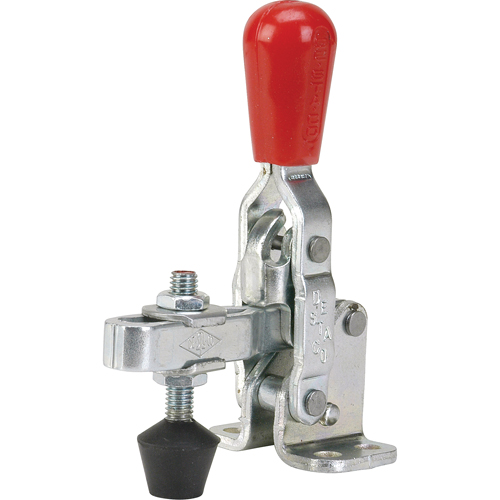

  • Vertical Hold-Down Clamps - 201 Series - DESTACO 201-U

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • The most popular type of hold-down clamp, manufactured in capacities of up to 6000 lbs. The hold-down bar exhibits a minimum 90° opening angle and can be solid or U-shaped. Stainless steel units are available for the food industry or corrosive environments. The smallest vertical clamp available. U-shaped hold-down bar furnished with bonded neoprene-tipped 10-32 spindle assembly (TN140) and flanged washers (TN121).

Specifications

Style

Vertical

Clamping Force

100 lbs.

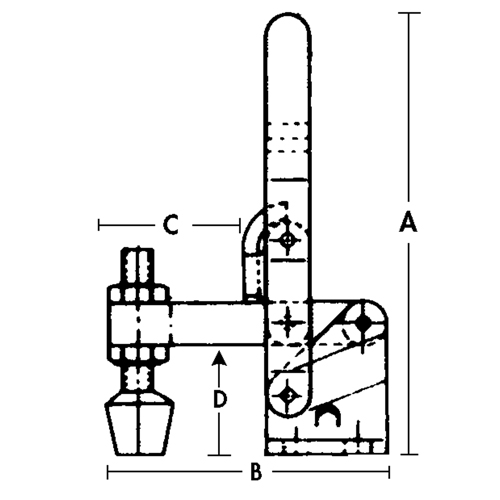

Dimensions" A

3.0625

Dimensions" B

2.015625

Dimensions" C

11/16"

Dimensions" D

5/8"

Base L" X W"

1 x 1 5/16

Weight

0.15 lbs.
