Darcor

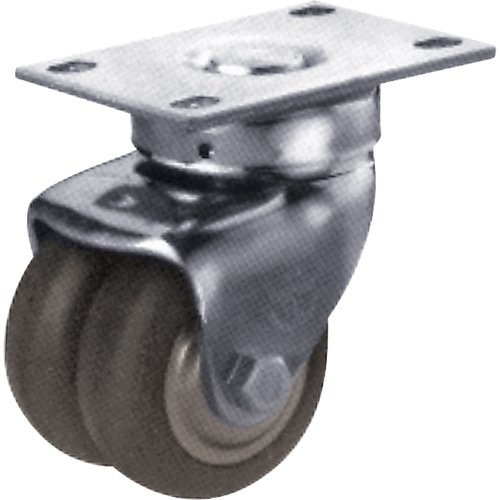

General Purpose Caster, Swivel, 2-1/2" (63.5 mm), Neoprene, 300 lbs. (136 kg.)

Model: MG257

Mfr. No.: 16-32.5-XSR

See Product Details

  • General Purpose Caster, Swivel, 2-1/2" (63.5 mm), Neoprene, 300 lbs. (136 kg.) - Darcor 16-32.5-XSR

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Related Products

Description

  • 1/2" rivet
  • 5/6" axle
  • Double row ball bearing swivel; both raceways equal diameter
  • All swivel parts case hardened to Rockwell 62C
  • Thread guards standard on 2 1/2" wheels
  • Bright chrome finish; Excellent for:
  • Computer carts
  • Airplane carts
  • Safes/cabinets; Plate size: 2 1/2" x 3 5/8"; Holes slotted for: 1 3/4" x 2 3/4" to 3"; Bolt hole size: 5/16";

Specifications

Wheel Diameter

2-1/2" (63.5 mm)

Capacity

300 lbs. (136 kg.)

Wheel Material

Neoprene

Caster Type

Swivel

Frame Material

Steel

Tread Width

1" (25.4 mm)

Bolt Hole Spacing

2-3/4" x 1-3/4" (70 mm x 44 mm)

Bolt Hole Size

5/16" (7.93 mm)

Plate Size

2-1/2" x 3-5/8" (64 mm x 92 mm)
